Pallet systems

OmniFix CT Kit Elevation columns

626140-9300-100
1.000,00 €excl. VAT
Available
pcs
Application

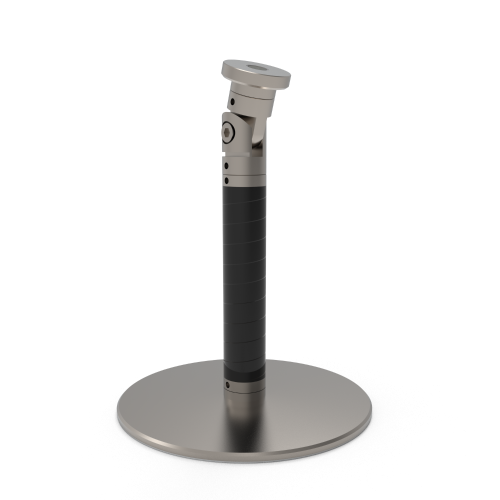

If it becomes necessary to raise small parts a little higher, then such carbon fiber tubes are very helpful. Carbon fiber has a very low density and is therefore very suitable for radiography. The OmniFix CT Kit Elevation Columns features a magnetic base plate for mounting on GAMMA pallets, various carbon fiber Elevation Columns, a kink element for tilt angle adjustment and 2 mounting plates of different sizes with magnetic inserts. The whole thing can be quickly and easily expanded, e.g. with the plastic jaw chucks from ZEISS

  • Adjusting the height with REACH extensions
  • Easy to use
  • Integrated tilt angle setting
  • Fastening via integrated magnets
  • Many expandability options
Details
Application
Tomographic
Product Type
Mount
Machine
METROTOM
Material
Carbon Fiber

Elevation columns kit for GAMMA pallets

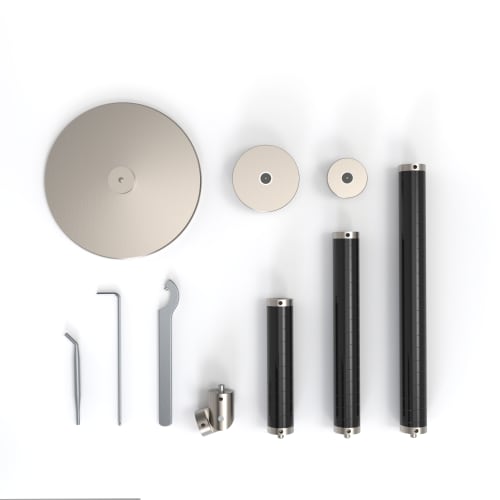

Consisting of:

  • 1x 626107-2100-300 REACH CFX 1 extension
  • 1x 626107-2150-300 REACH CFX 1 extension
  • 1x 626107-2200-300 REACH CFX 1 extension
  • 1x joint (626105-6280-070)
  • 1x hook wrench (626109-0013-000)
  • 1x pin wrench (602030-0222-000)
  • 1x T-grip Allen wrench (626109-0037-000)
  • 1x magnetic support Ø 30 mm
  • 1x magnetic support Ø 50 mm
  • 1x base plate
