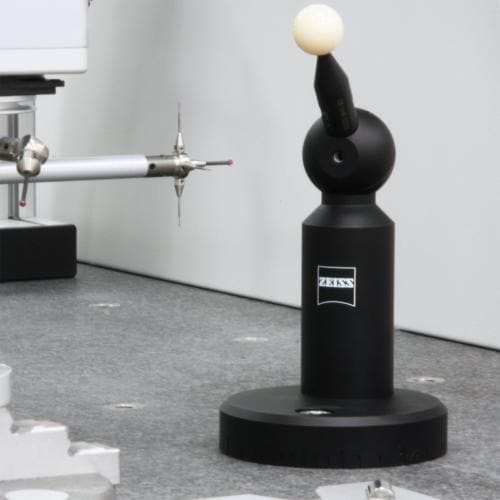

Complete reference sphere kit, DK 25, 214 mm, M10 base product photo Front View L
Complete reference sphere kit, DK 25, 214 mm, M10 base product photo

Complete Reference Sphere Kits

Complete reference sphere kit, DK 25, 214 mm, M10 base

600332-9258-000
1.375,00 €excl. VAT
Available
pcs
Details
Application
Tactile
Product Type
Reference Set
Machine
DuraMax
Stylus Tip Material
Ceramic
Ø Sphere (DK)
25,0 mm
Length (L)
214,0 mm
Material
Stainl. St.

Reference Sphere Holder (RSH)

  • lenght: 214 mm
  • connection thread: M6
  • mounting hardware for tables with M10 thread

Reference Sphere

  • diameter sphere: DK = 25 mm
  • diameter shaft: DS = 7 mm
  • diameter base element: DG = 18 mm
  • length: L = 82.5 mm
  • connection thread: M6
  • material of sphere: ceramic
  • Surface porosity: less than µ20
  • Sphericity: less than µ0.13

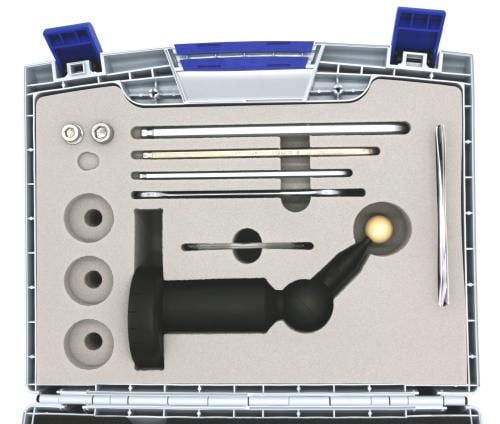

Includes carry case and tools Includes calibraton certificate
